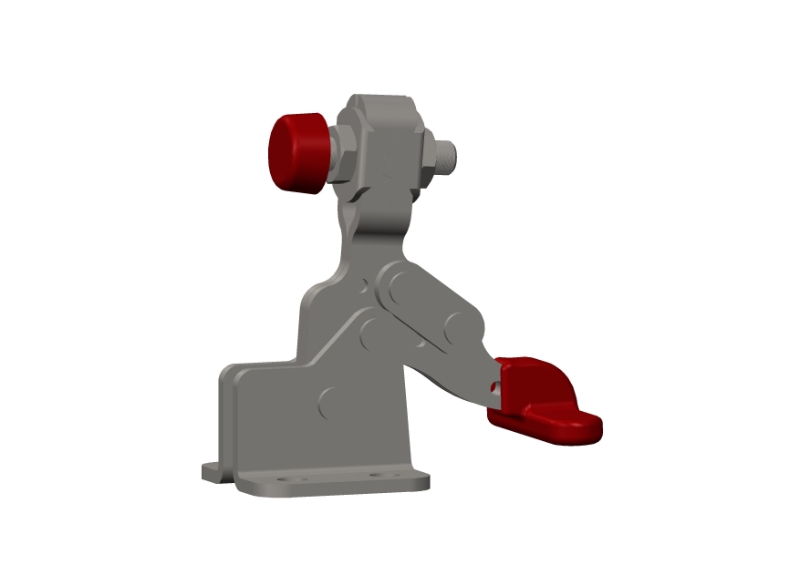

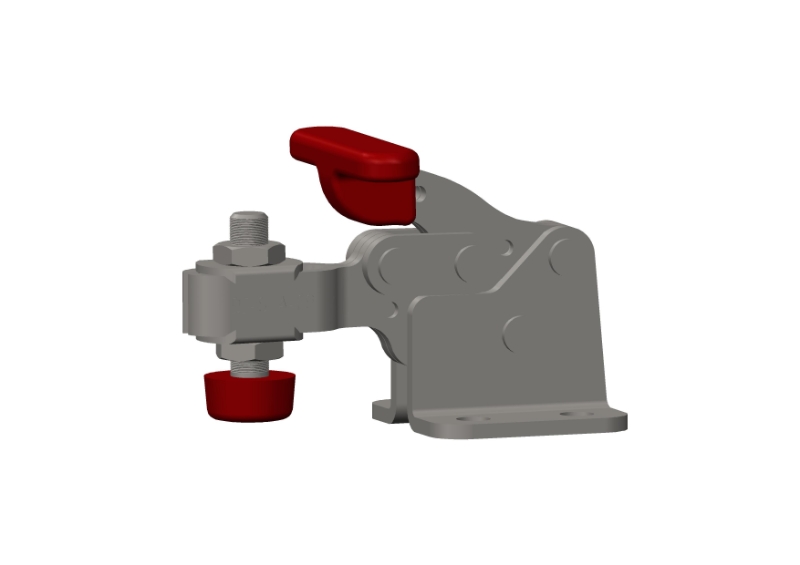

DESTACO BRIDA 307-U

Brida de sujeción de silueta baja. Con una asa que se puede operar desde cualquier lado o desde atrás
Hasta 150 libras (670 N) de capacidad
Se suministra con husillo de neopreno.
Modelos de acero inoxidable disponibles.

CARACTERÍSTICAS TÉCNICAS

Maxmum Holding Capacity (N): 1,560
Maximum Holding Capacity (lbsf): 350
Clamp Arm Length (mm): 48.0
Clamp Arm Length (in): 1.890
Height Under Clamp Arm (mm): 22.6
Height Under Clamp Arm (in): 0.890
Clamp Bar Opening (+10°) (degrees): 92
Handle Opening (+10°): 173
Standard Material: Steel
Toggle Lock Plus: No
Accomodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Horizonal
Service Environment: Normal
Application - Welding: Fair/Medium
Application - Assembly: Excellent/High
Application - Checking Fixtures: Fair/Medium
Application - Machining: Fair/Medium
Application - Wood-Working: Excellent/High
Application - Closures: Excellent/High
Application - Food Processing: Fair/Medium
Duty Cycle: 2
Product Type: Compact
Weight (kg): 0.24
Weight (lb): 0.53
